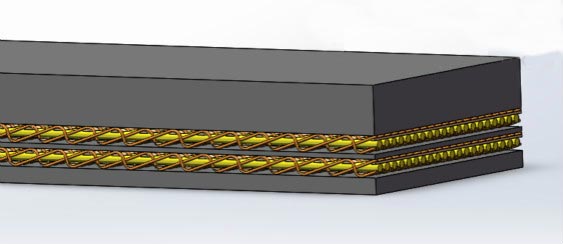

Thin carcass：
Replacing the multilayer structure with 1 or 2 plies, which will reduce 7%~17% of the full thickness
and improve sinuosity, making the belt running well with the smaller pulley, and the single roll length
will be 400~500 to reduce loss.
High strength：
With the special weaving method of high denier fiber, the tensile strength of the fabric layer will be
improved, and the working elongation of the conveyor belt will be reduced.

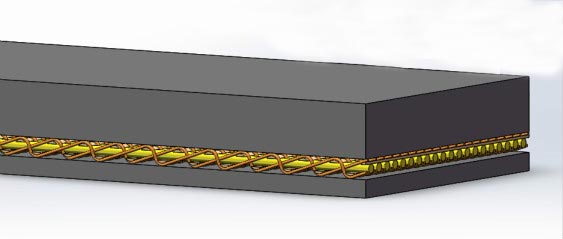

Excellent toughness：
The special structure of straight wrap can absorb impact better than ordinary EP or NN fabric, which
will extend the service life of the belt.

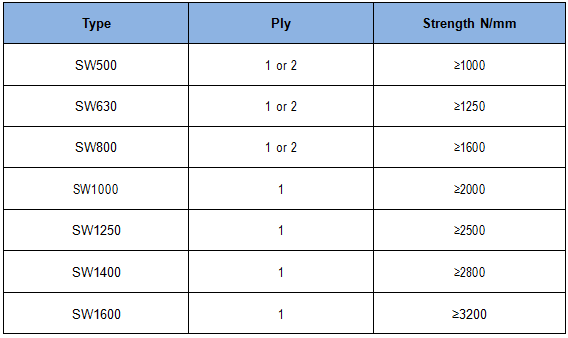

In accordance with ISO14890-2013 standard

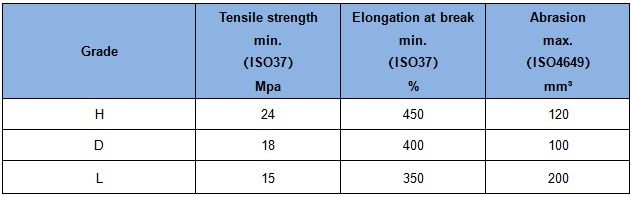

The values are essential for determining the appropriate cover compound for the application or the materials being conveyed. However, a reliable assessment of the covers’ behavior in terms of wear and cut resistance cannot be made based solely on tensile strength and abrasion values.
