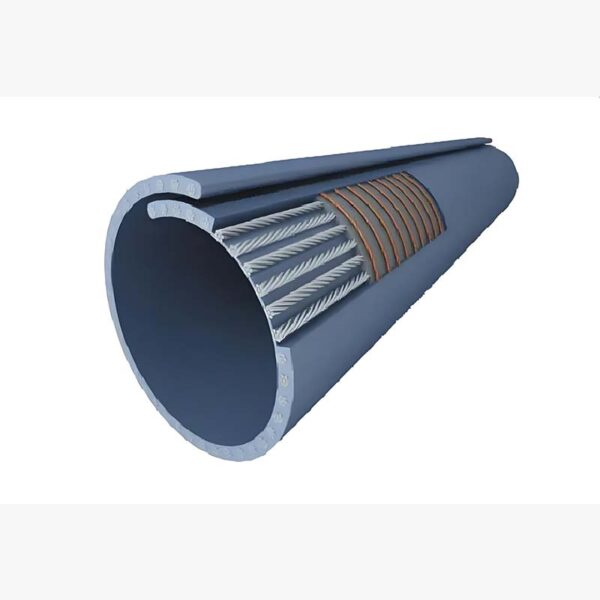

Steel Cord Pipe Conveyor Belt

Usage

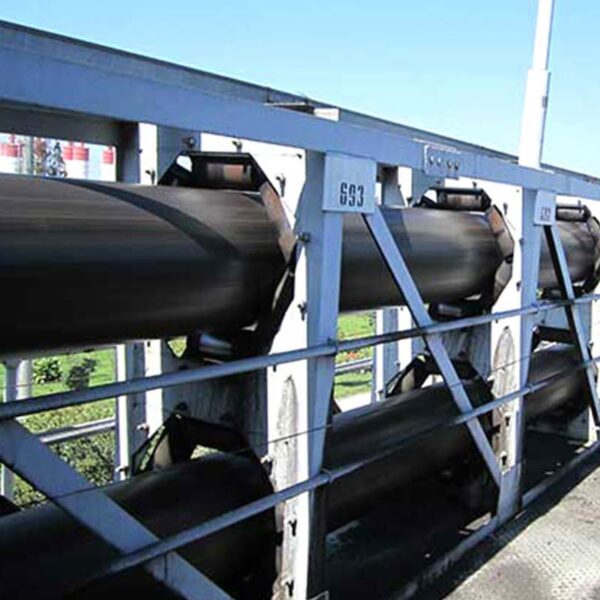

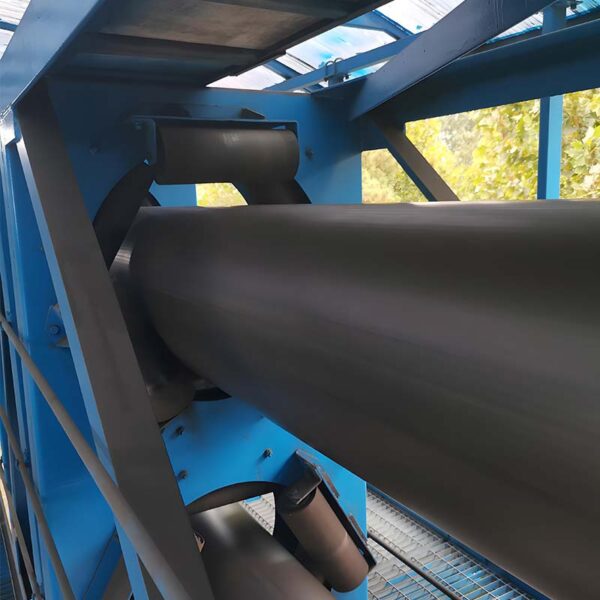

The steel cord pipe conveyor belt represents a novel approach to conveying, employing steel cord as the carcass and high-elastic, highly abrasion-resistant, and strong rubber as the working surface. Primarily designed for conveying easily contaminated materials such as powders and granular substances, this conveyor belt operates by transforming from a flat shape to a U shape and ultimately to a pipe shape during operation. This unique design effectively folds the materials, enabling enclosed conveying and facilitating efficient material transport.

PRODUCT DETAILS

Characteristics

The steel cord pipe conveyor belt enables enclosed conveying, offering protection to both the materials being transported and the surrounding environment.

It supports steep angled conveying, with the conveying angle typically reaching up to 30°.

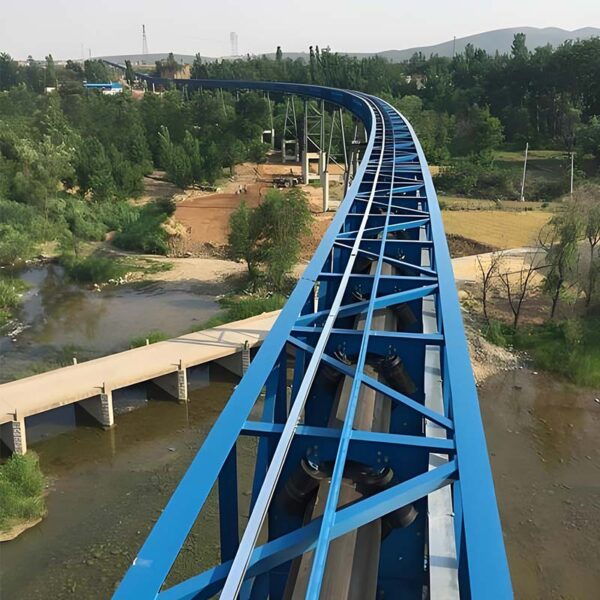

Additionally, the conveyor line can be flexibly arranged to accommodate the curvature of the available space.

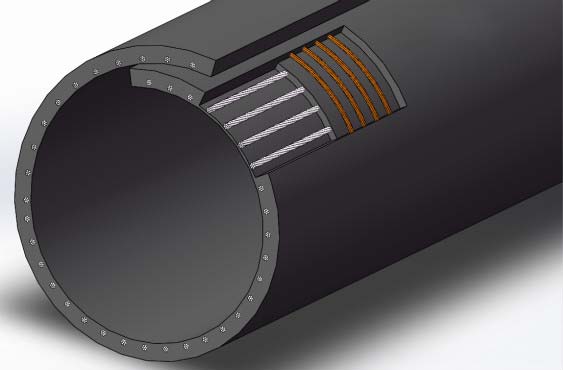

Structure

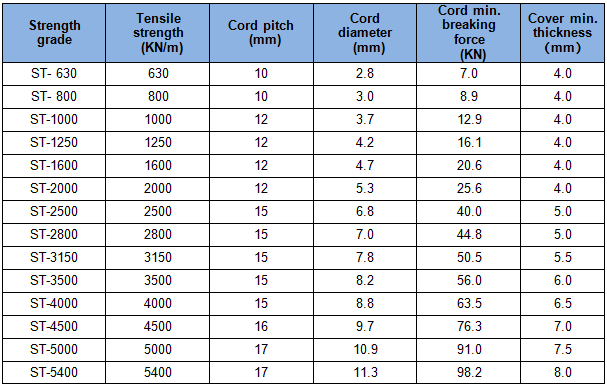

Standard Specifications

Pipe Diameter

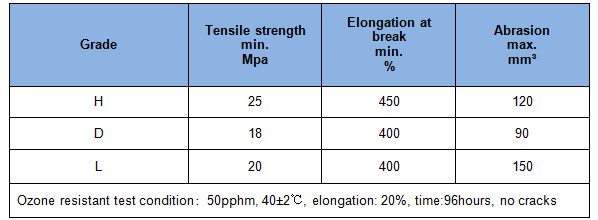

Cover Grades

In accordance with HG4224-2011 standard

The values provided will aid in selecting the suitable cover compound for the application or the materials being conveyed. It’s essential to note that assessing the performance of covers regarding wear and cut resistance requires more than just considering tensile strength and abrasion values alone.
