Sidewall Conveyor Belt

Usage

PRODUCT DETAILS

Characteristics

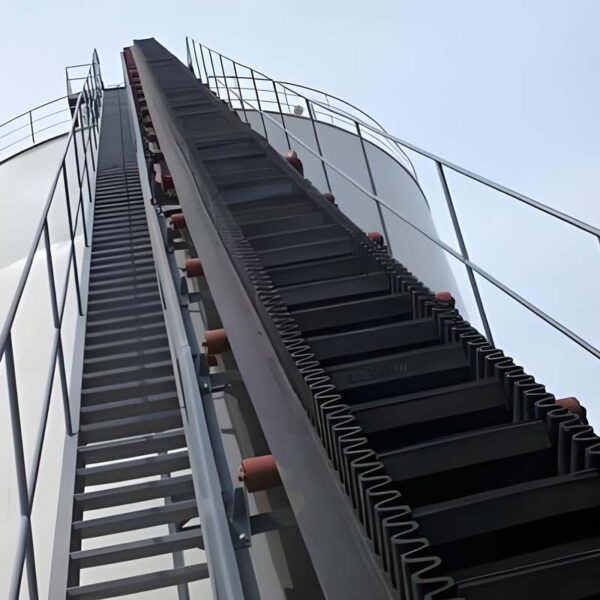

To prevent the scattering of conveying materials due to site restrictions or the need for lifting materials at steep angles, the sidewall conveyor belt must withstand extremely high stress and repeated flexing associated with high-capacity, steep angle conveying. Wisper engineers have specially designed this belt using high-quality polyester fabrics with extremely low elongation to ensure higher rigidity. This product is suitable for conveying materials at large dip angles ranging from 0° to 90°.

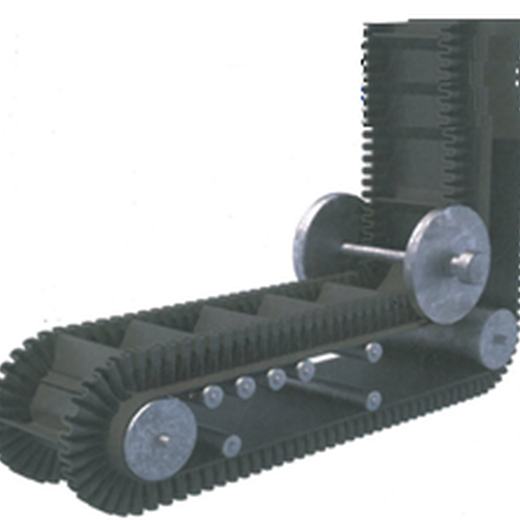

Structure

Sidewall Conveyor Belt

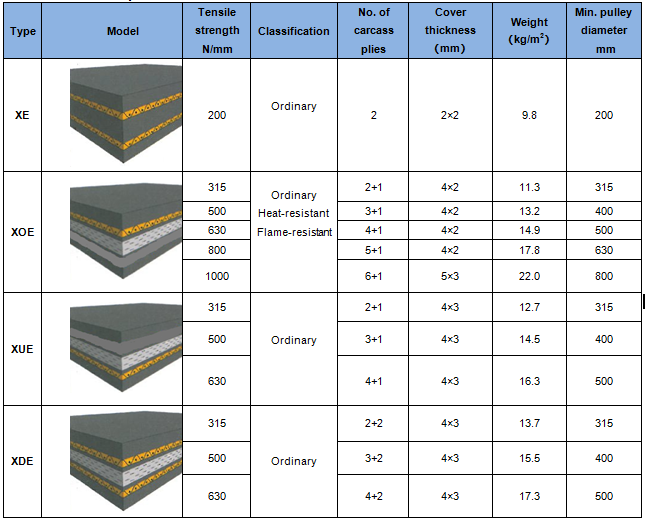

Standard Specifications

Sidewall Conveyor Belt

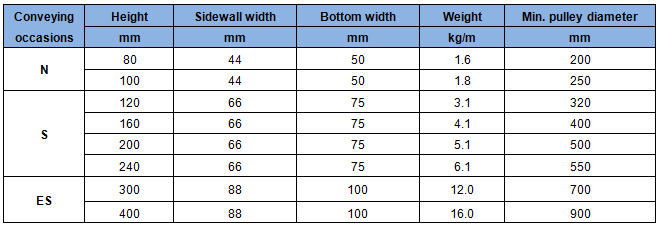

Sidewalls

The sidewalls are moulded in a high quality rubber.

It’s available in two types:

Rubber (BG)

Rubber with fabric reinforcement (BGT)

Note:N-light load;S-medium load;ES-heavy load

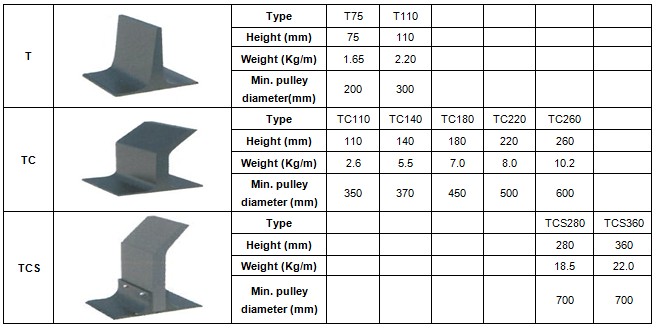

Cleat

The cleat is made of high quality rubber, having high elasticity on the supporting effect.

It’s available in two types:

Rubber (BG)

Rubber with fabric reinforcement (BGT)

Sidewall Conveyor Belt
Sidewall Conveyor Belt

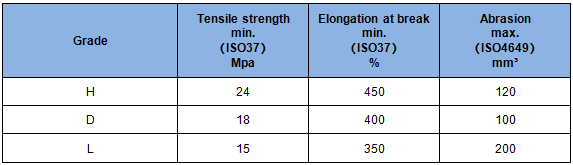

Cover Grades

Sidewalls The sidewalls are moulded in a high quality rubber. It’s available in two types: Rubber (BG) Sidewall Conveyor Belt
