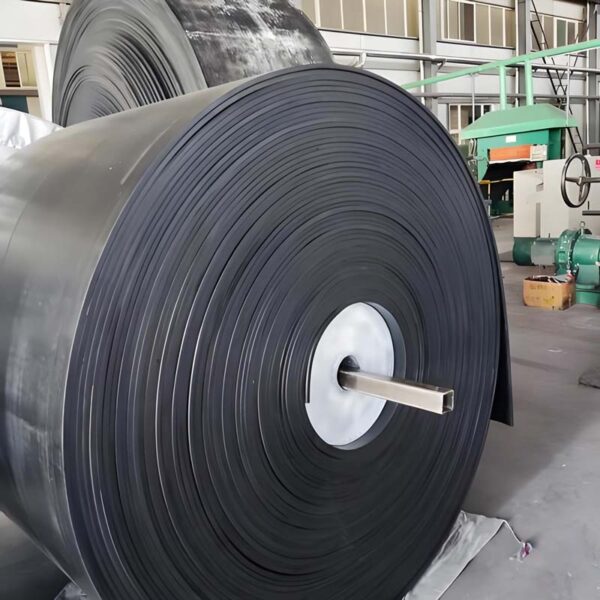

Fabric Conveyor Belt

Usage

Fabric conveyor belts are adept for conveying materials over medium to long distances, bearing heavy loads, and accommodating high-speed transportation. They find extensive application in sectors such as mining, metallurgy, construction, ports, power generation, chemical industries, and more.

PRODUCT DETAILS

Characteristics

NN fabric

– High stability

– Short pulley diameter

– High heat resistance

– Strong anti-shock

– Excellent adhesive force to rubber

EP fabric

– Low elongation

– Strong anti-shock

– Excellent adhesive force to rubber

– High stability

– Temperature≤140℃

(It will decompose over 140℃)

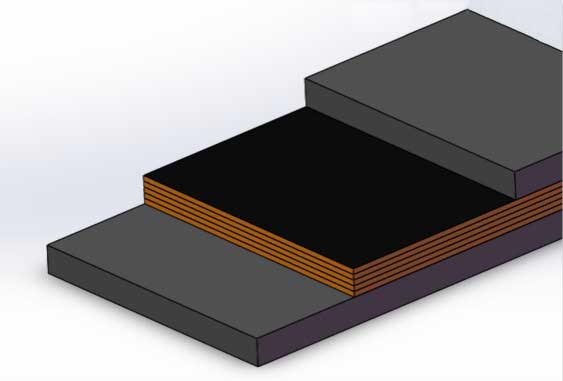

Structure

Fabric Conveyor Belt Structure

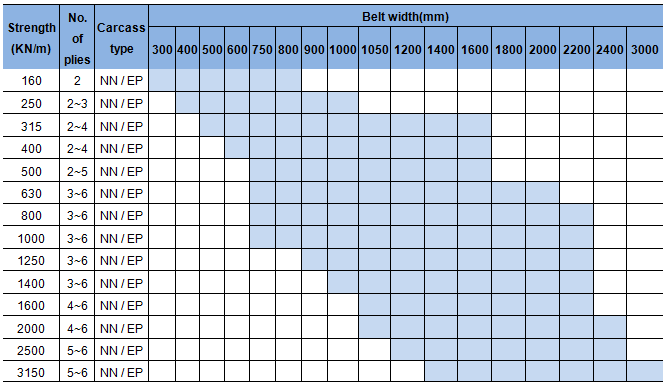

Standard Specifications

Fabric Conveyor Belt Standard Specifications

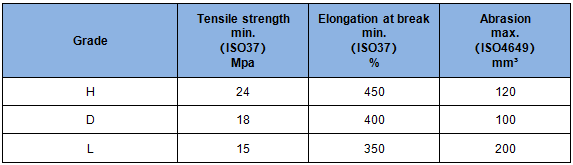

Cover Grades

In accordance with ISO14890-2013 standard.

Values play a crucial role in selecting the suitable cover compound for the application or the materials being conveyed. It’s important to note that solely relying on tensile strength and abrasion values may not provide a reliable assessment of the covers’ performance in terms of wear and cut resistance during service.
