Anti-tear Steel Cord Conveyor Belt

Usage

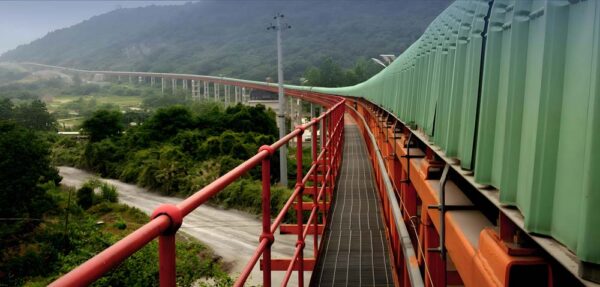

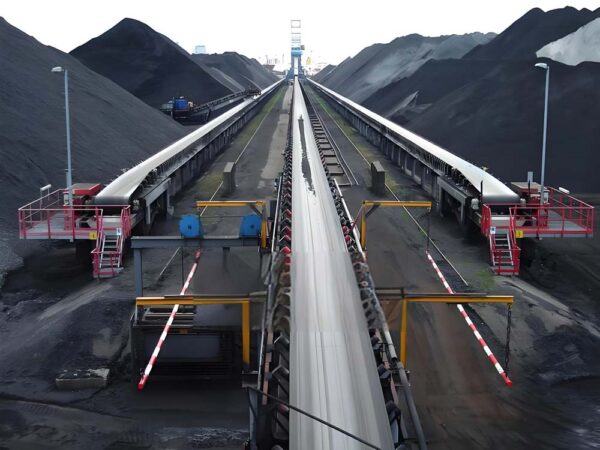

This conveyor belt is well-suited for transporting hard and sharp materials, particularly in environments with larger drop heights. It finds applications in various industries including mining, ports, electricity generation, metallurgy, chemical processing, and coal mining.

PRODUCT DETAILS

Characteristics

The anti-tear conveyor belt features highly extensible transverse steel cords or polyester cords evenly distributed within the top cover (or both top and bottom covers) of the steel cord carcass. Positioned perpendicular to the belt’s running direction, the anti-tear layer acts as a barrier when conveying hard and sharp materials, effectively preventing piercing. Even in cases of penetration, the anti-tear layer provides additional protection against tearing.

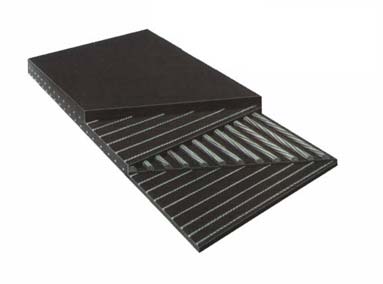

Structure

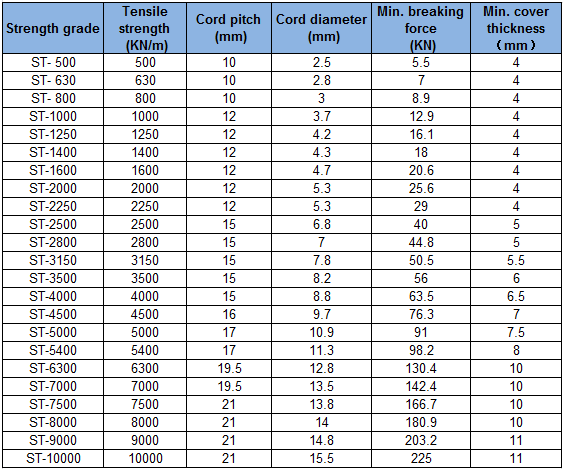

Standard Specifications

Note: We offer the flexibility to manufacture cover thickness, cord diameter, and cord pitch according to the specific requirements of our customers.

Cover Grades

In accordance with ISO15236-2016 standard

These values play a crucial role in selecting the suitable cover compound for the application or the materials being conveyed. It’s important to note that accurately assessing the behavior of covers regarding wear and cut resistance requires consideration beyond just tensile strength and abrasion values alone.
